Voltage Sensitive Relay (VSR)

BS11040

Inclusief BTW

Totaal

€ 138,47

Dit product heeft een langere levertijd dan dat u van ons gewend bent.

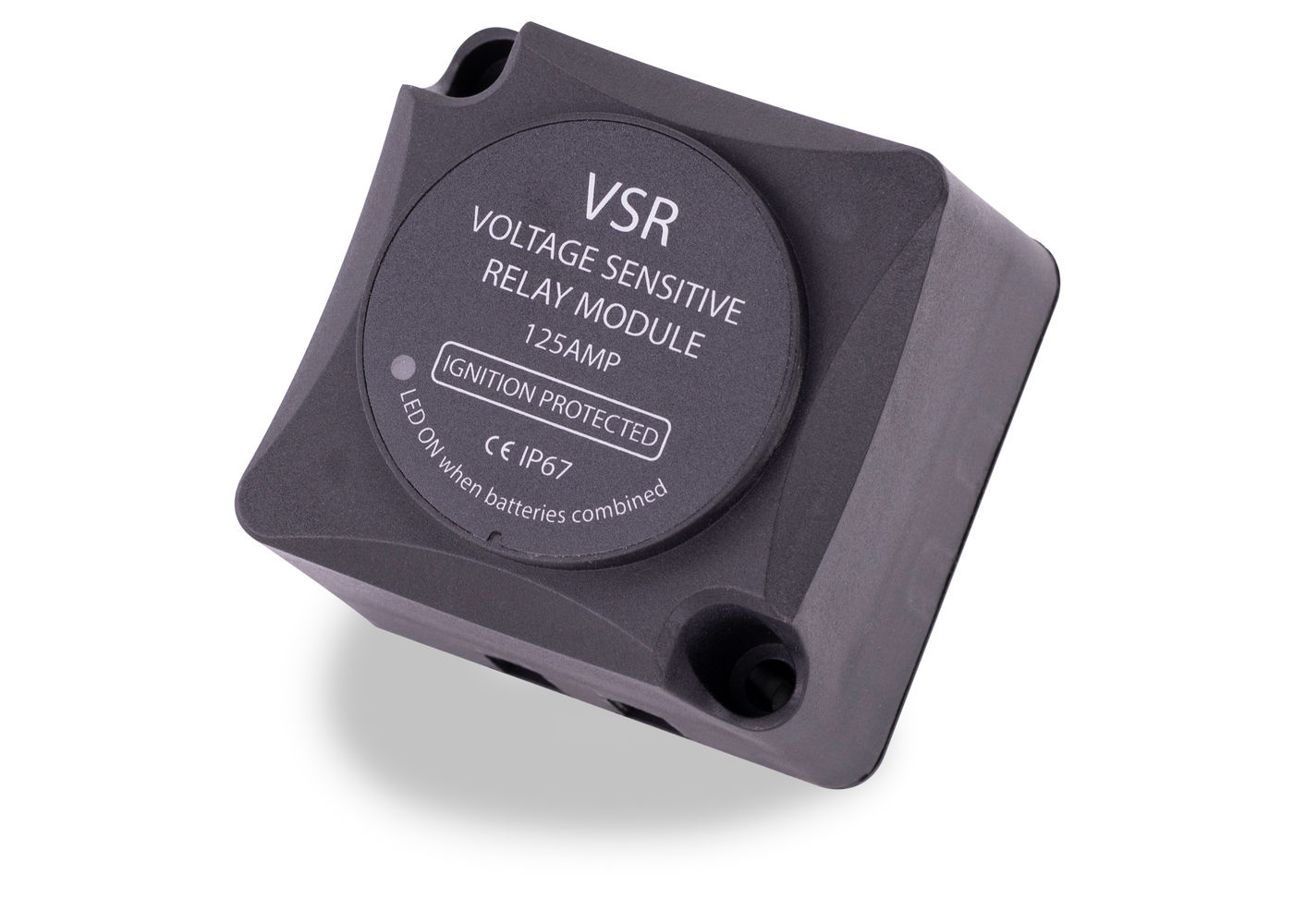

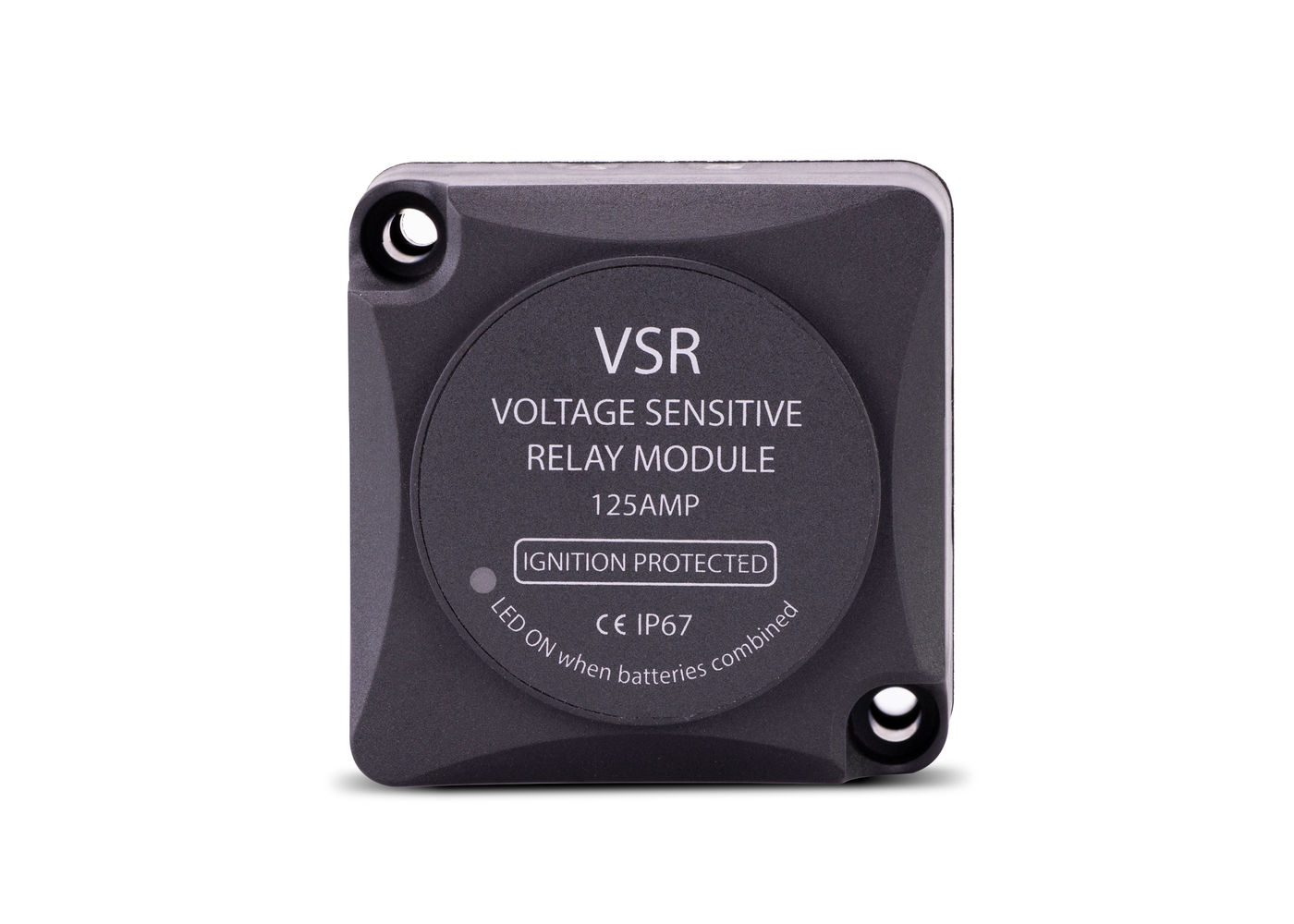

Voltage Sensitive Relay (VSR)

Nominal Voltage: 12VDC
Combined Voltage: 13.3VDC
Open Voltage: 12.8VDC
Continuous Current Rating: 125A
Intermittent Current Rating: 140A
Power Consumption: 10mA (Standby)/ 330mA (Engage), 0mA (Storage Mode)
Automatically combines two batteries when charging and isolates the two batteries when not charging
No voltage drops comparing to battery isolator diodes (0.6V)
Robust Glass Fiber reinforced Nylon enclosure
Built-in LED indication when VSR is engaged
Port for remote LED indicating VSR status
Surface or panel mount options prove flexibility when installing
Storage mode allows zero power consumption when the engine is off
CE and IP67 Certifications
