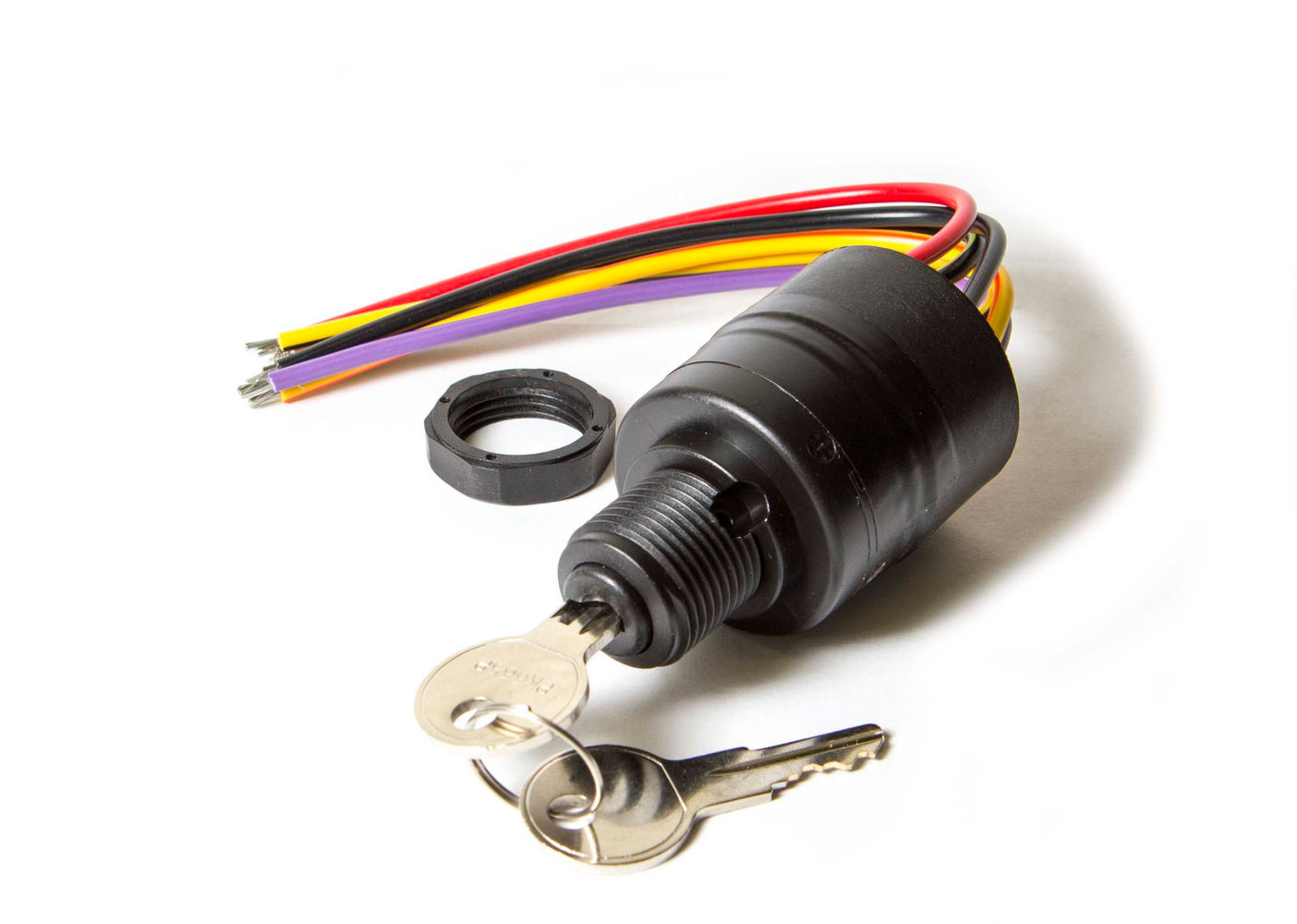

Switch, Ignition

Ignition Switch - 3 Position Magneto

• Back Up Nut: Not Required
• Face Nut: Hex Black Plastic
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 6 Color Coded Wire Leads/Potted
• Switch Function: Off - Run - Start
• Type: 3 Position Magneto
• Note: Colors on switch wires match factory color codes
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Push to Choke

Vervangt
• Seadog 420383-1
• Mercury Marine 87-17009A2
• Mercury Marine 87-17009A5

Aantal per motor
• 1

Fabrikant
• Sierra
