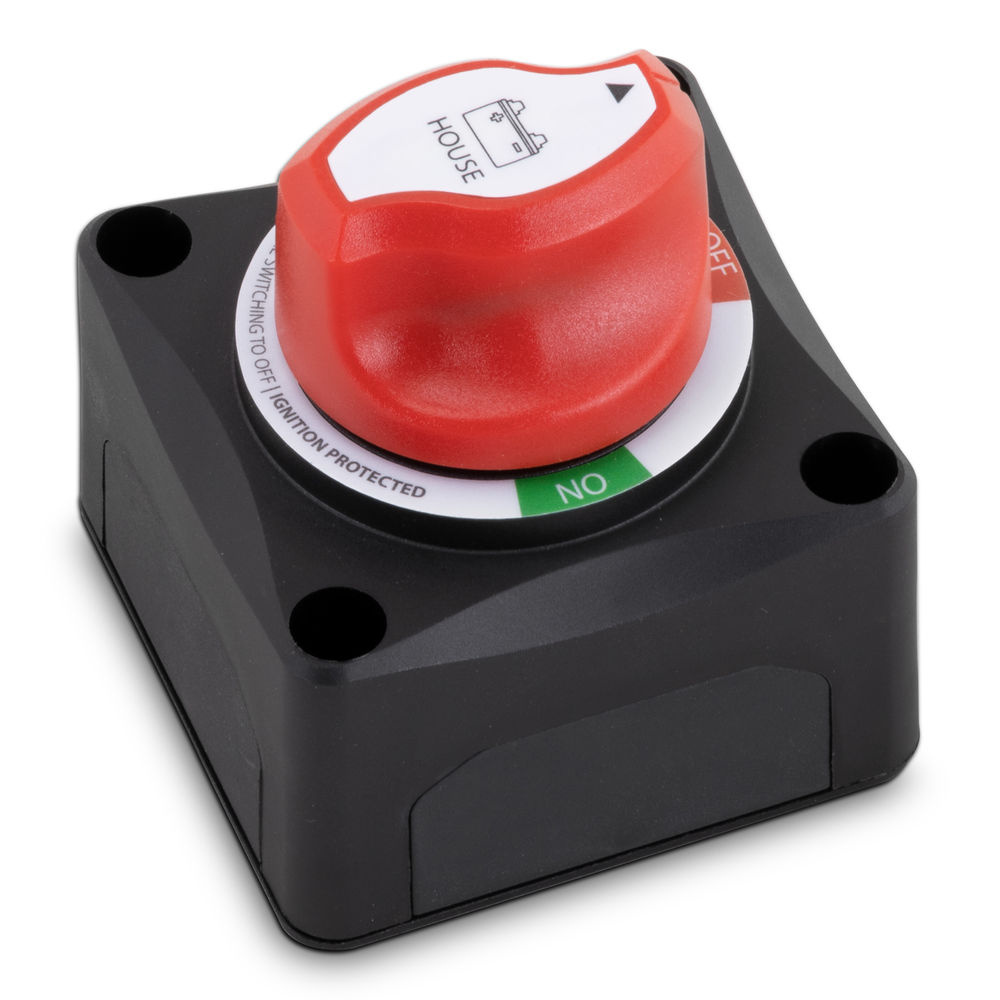

Switch, 2 Position Battery Disconnect with AFD

Battery Switch w/ AFD 2-Position

• Function: ON-OFF
• Maximum Voltage Rating: 48VDC
• Stud Size: M10
• Cranking Rating: (10 Seconds): 1250A
• Intermittent Rating: (5 Minutes): 455A
• Continuous Rating: 275A
• Battery Input: 1
• Switch Function: 2
• Battery Studs: Tin-Plated Copper
• Stud Torque: 120 lb.-in
• Cable Size: 4/0 AWG to Meet Ratings
• Unique ergonomic and aesthetic knob design
• Removable knob for added level of safety and isolation
• Robust Glass Fiber reinforced Nylon enclosure
• Removable windows on all four sides for unobstructed wiring
• Surface or panel mount options provide flexibility during installation
• Includes (4) M4x35 Mounting Screws
• Meets Ignition Protection Standard (ISO8846/ SAE J1171)
• Interchangeable knob labels for easy identification
• CE certified; IP66 Rated
• Smallest battery switch with Alternator Field Disconnect in the market

Fabrikant
• Sierra
