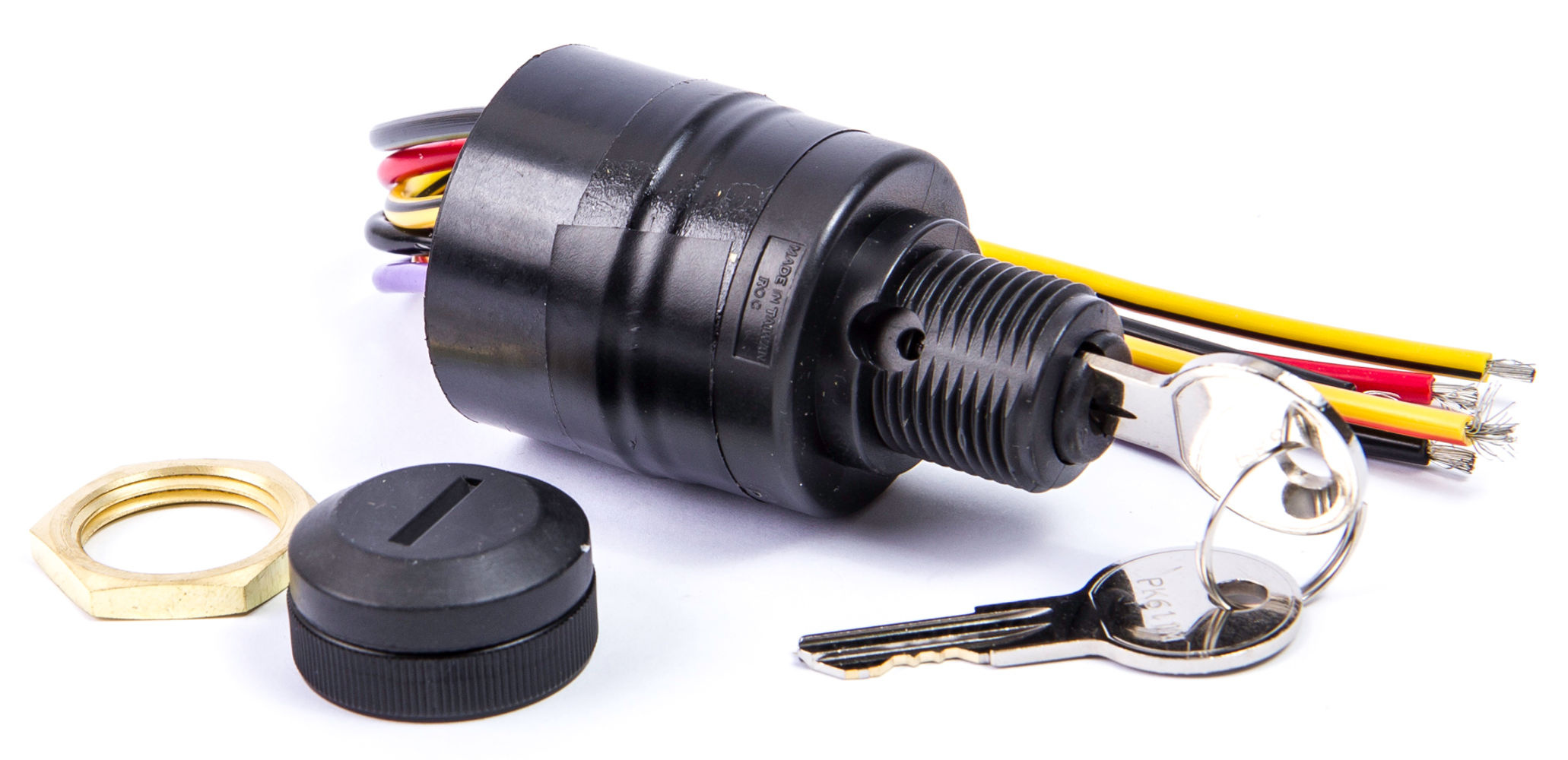

Switch 16 AWG

Ignition Switch - 3 Position Magneto

• Push to choke
• Material: Marine grade glass-filled Polyester
• Length: Short: 5/8 maximum panel thickness
• Terminal Type: 6 color code wires
• Back up Nut: Plastic
• Face Nut: Knurled black plastic with rubber cap
• Hole Size: 7/8
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Rated Choke: 7 Amp @ 12v DC
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

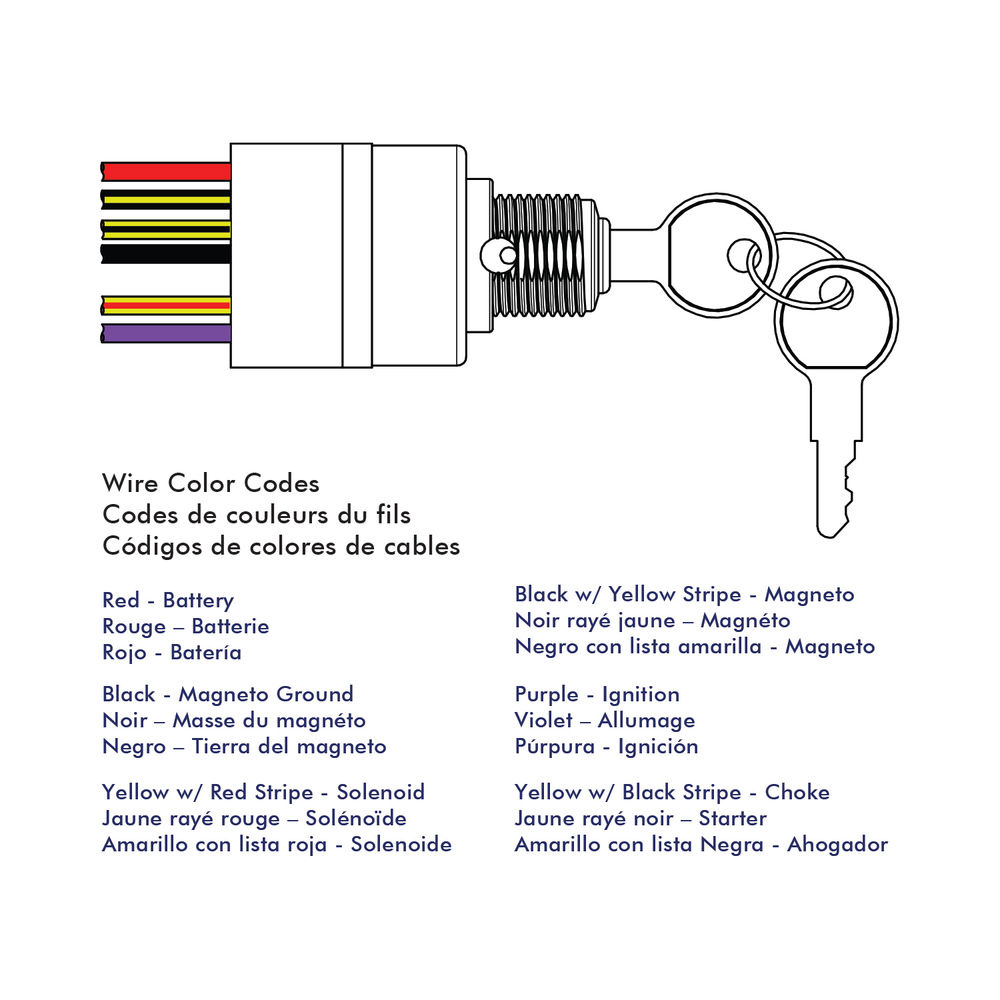

• Note: Colors on switch wires match factory color codes
• Type: 3 Position Magneto
• Switch Function: Off-Run-Start

Aantal per motor
• 1

Fabrikant
• Sierra
