Panel, 6 Function Touch 12V/24V

SP21020

Inclusief BTW

Totaal

€ 175,43

Dit product heeft een langere levertijd dan dat u van ons gewend bent.

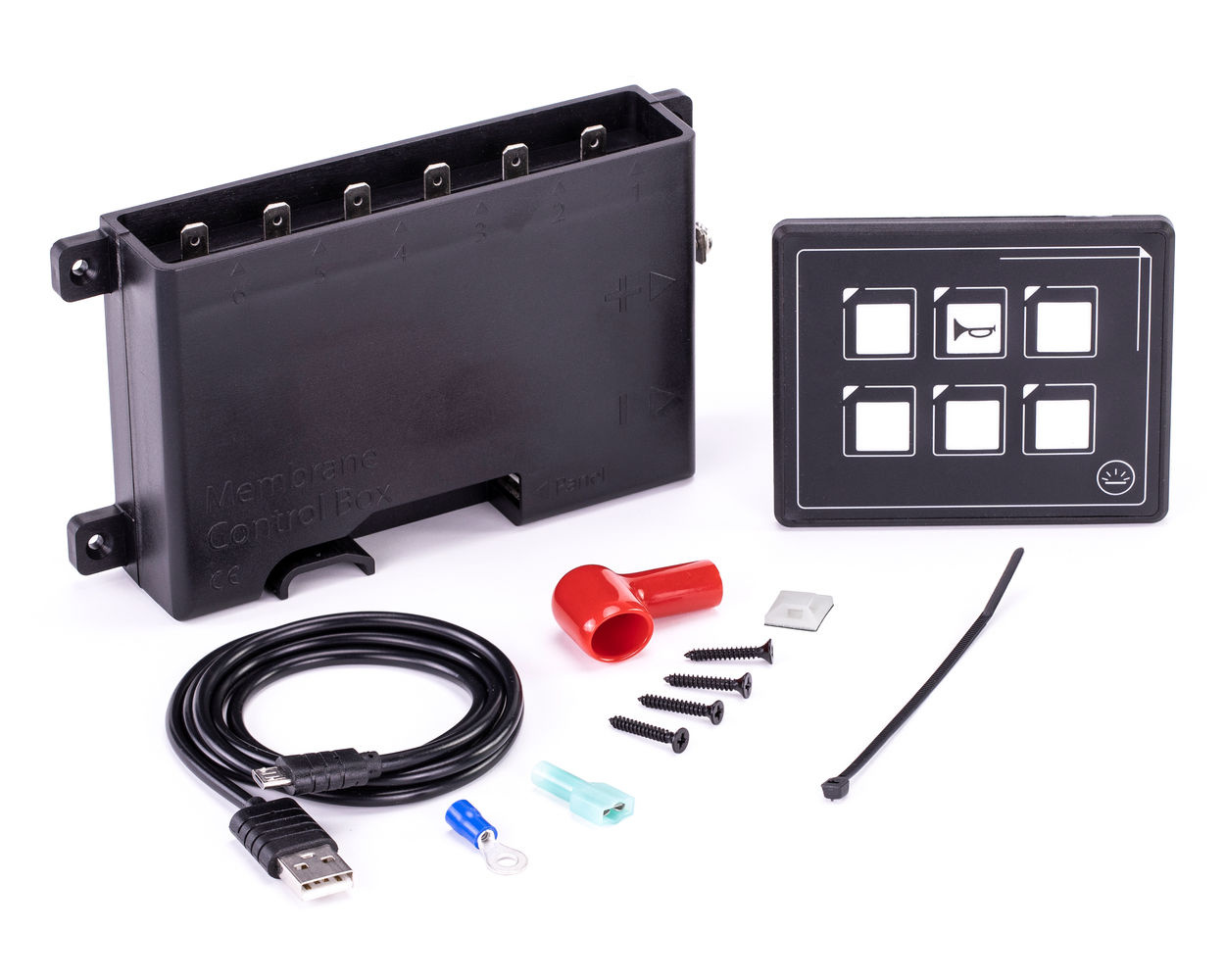

PANEL, 6 FUNCTION TOUCH 12V/24V

Panel Dimensions: 130mm x 75mm
Control Box Dimensions: 214 x 95 x 29mm
Panel Cut-Out: 15mm hole
Switch Ratings: 10A per function at 12VDC
Panel Rating: Max Cumulative Amp: 60A
Voltage Rating: 11-30VDC
Circuit Protection: Built-in Resettable Fuse (PPTC)
Ultra Compact panel size up to 60% smaller that traditional panels
Easy to install; almost no mounting depth required
Uses micro-USB cable instead of bulky cables
Flexible wiring allows the control relay box to remote mount up to 1 meter away from the touch panel
LED- ON indication
10A Self-resettable fuse for each function
Backlit push buttons allow for easy readability in the dark
Uses very low standby current
Programmable buttons allow each function to be programmed as a latching or momentary circuit
Includes: 60 piece assortment of graphic and text labels
Faceplate PET membrane touch panel
CE Certified; and Panel is IP 67 Rated
