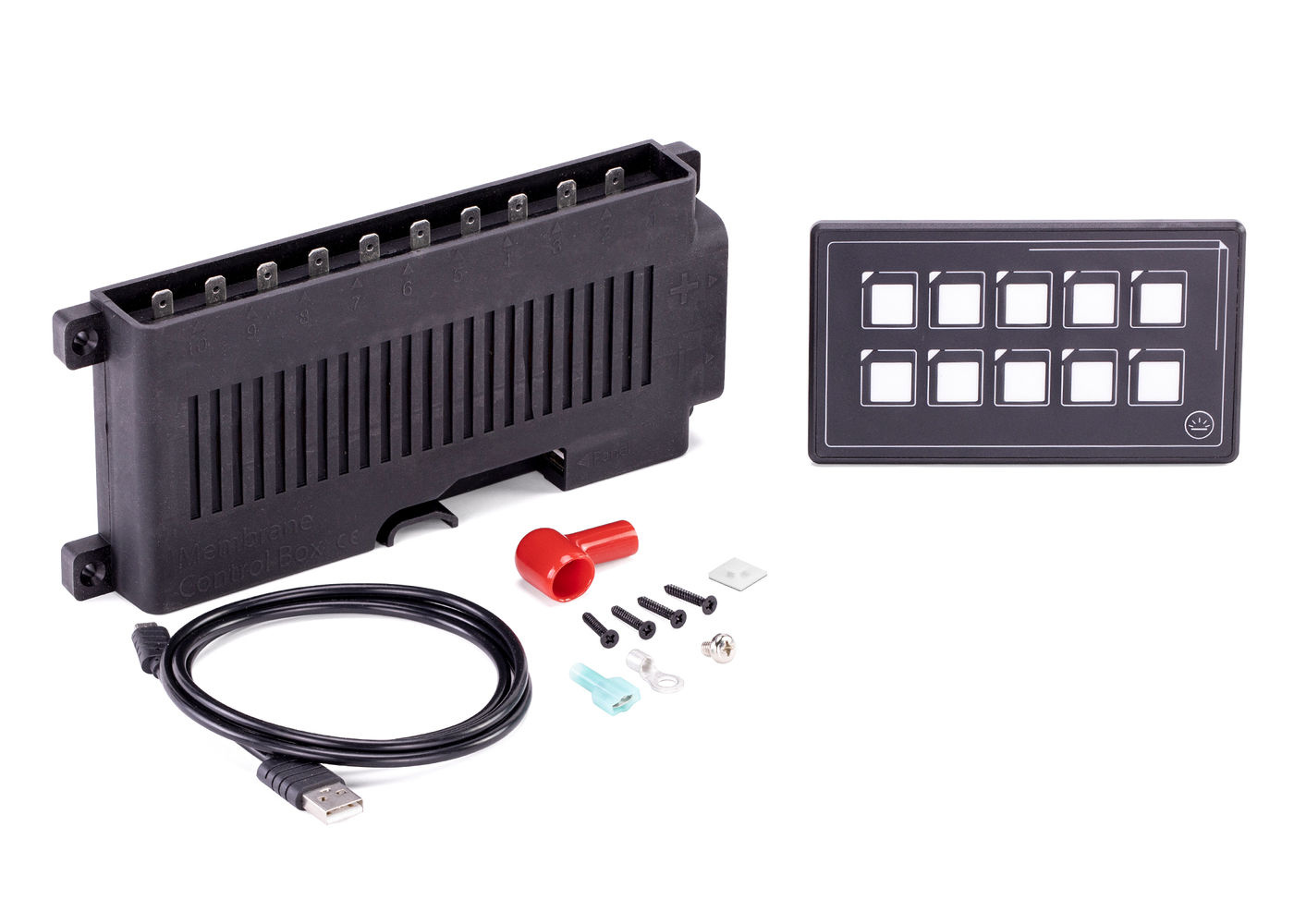

Panel, 10 Function Touch 12V/24V

SP21030

Inclusief BTW

Totaal

€ 230,54

Dit product heeft een langere levertijd dan dat u van ons gewend bent.

PANEL, 10 FUNCTION TOUCH 12V/24V

Panel Dimensions: 91mm x 75mm
Control Box Dimensions: 136 x 90 x 32mm
Panel Cut-Out: 15mm hole
Circuit Protection: Built-in Resettable Fuse (PPTC)
Switch Ratings: 10A per function at 12VDC
Panel Rating: Max Cumulative Amp: 35A
Voltage Rating: 11-30VDC
Membrane Touch Control Panels designed for the harsh Marine Environment
Ultra Compact panel size up to 60% smaller than traditional panels
Easy to install; almost no mounting depth required
Uses micro-USB cable instead of bulky cables
Flexible wiring allows the control relay box to remote mount up to 1 meter away from the touch panel
LED- ON indication
10A Self-resettable fuse for each function
Backlit push buttons allow for easy readability in the dark
Uses very low standby current
Programmable buttons allow each function to be programmed as a latching or momentary circuit
Includes a 60 piece assortment of graphic and text labels
Faceplate PET membrane touch panel
CE Certified; Panel only is IP 67 Rated
