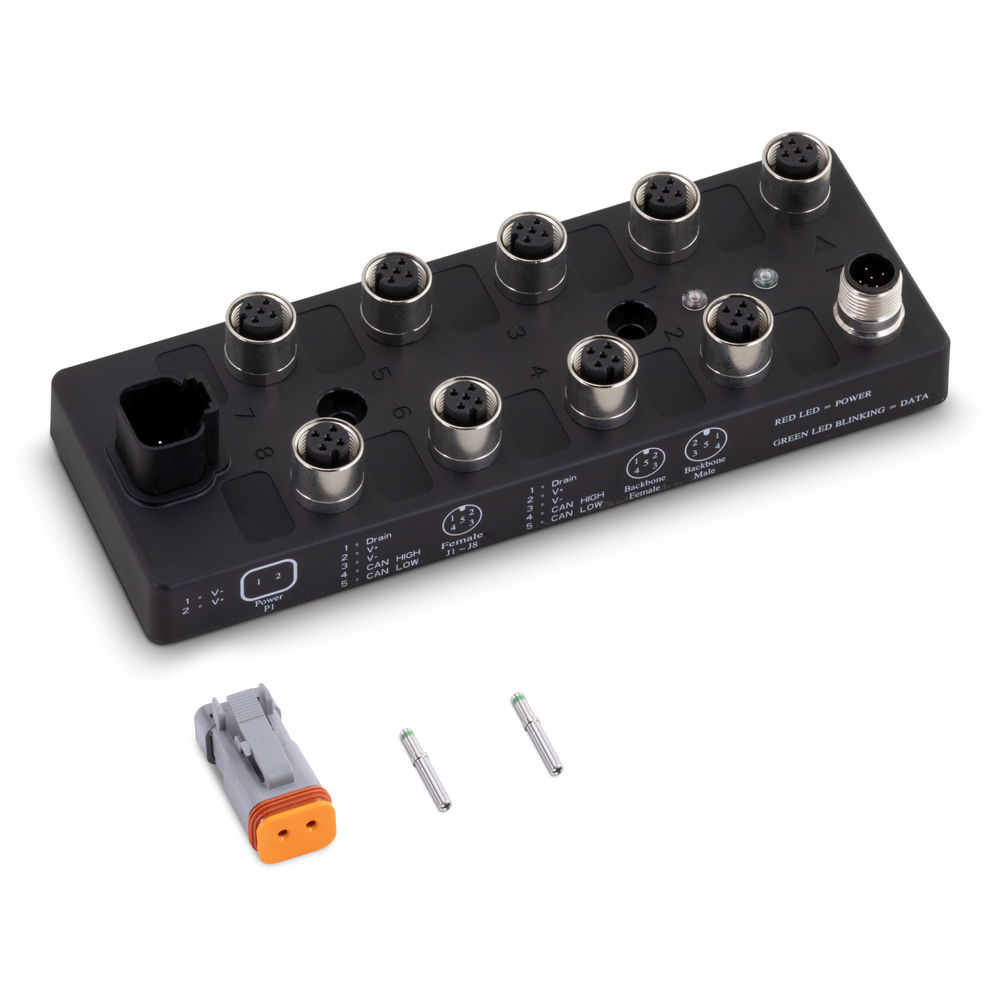

NMEA 2000 Hub

NMEA 2000 HUB

• Connection hub for NMEA 2000 Cables
• Sierras NMEA 2000 series of waterproof cables and adapters are NMEA approved.
• Specifically designed to fit marine requirements.
• NMEA series cables follow the requirements of a serial data communication network.
• Interconnect marine electronic equipment on vessels.
• Self-contained network(backbone cables not required)for devices that can be reached w/ a drop cable.
• Top terminals are used for backbone connections extending the network to another location --
• Install terminating resistors to complete the circuit.
• Eight drop termination points to link NMEA 2000 devices.
• Deutsch plug reliably powers the network and does not require an extra power tee.
• LEDs indicate 12V power and network traffic for easy diagnostic reference.
• Recessed decal locations to properly label each termination point.
• Rated to IPX7 for reliable, water-tight connections.
• Premium metal connection collars ensure connections are tight and secure.
• Interchangeable with other NMEA 2000 products.
• Terminals built with gold-plated copper alloy for superior conductivity.

Fabrikant
• Sierra
