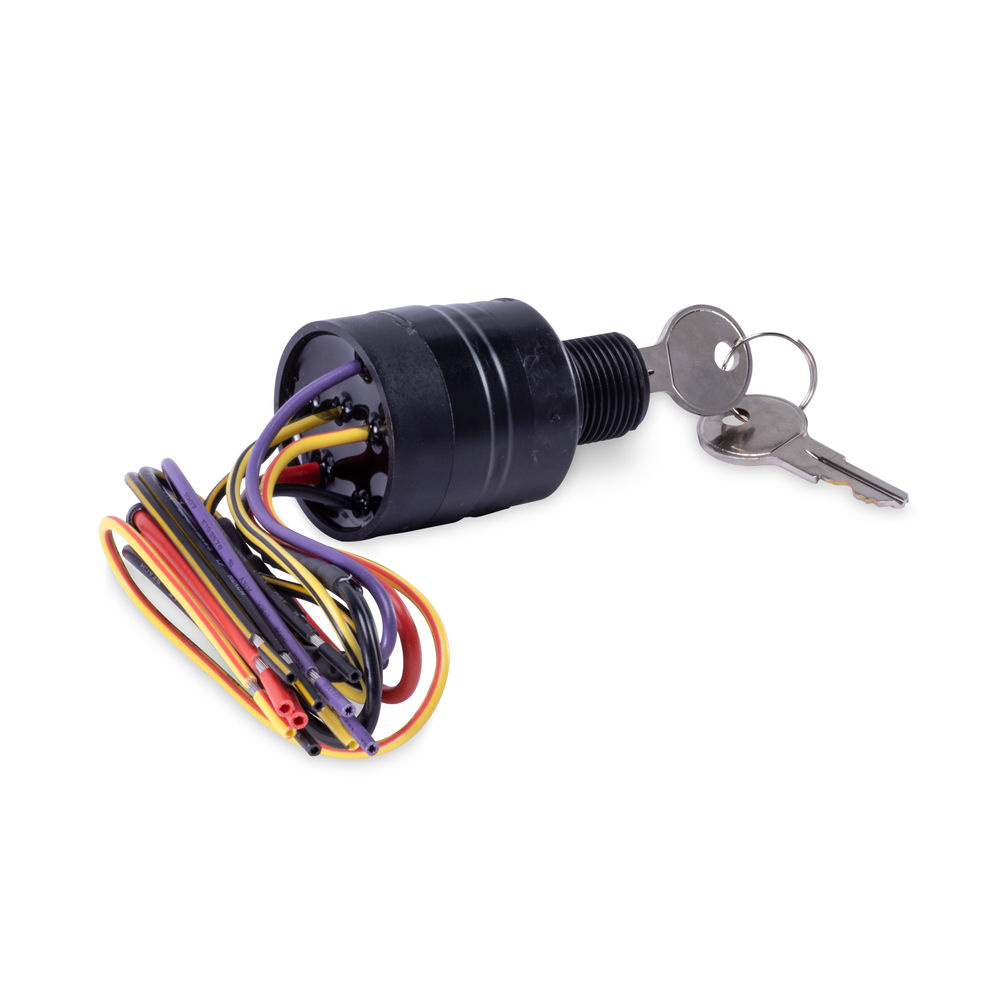

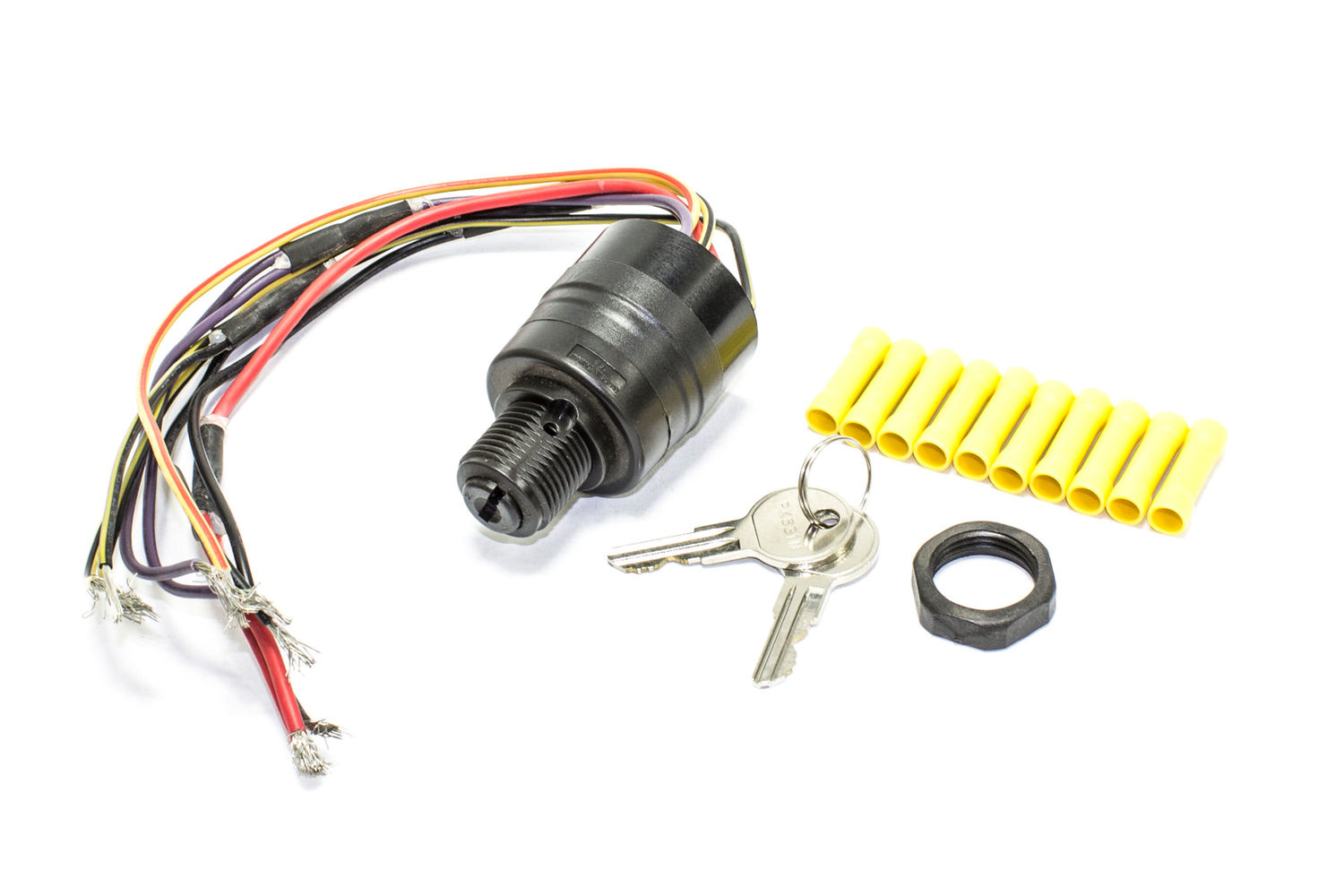

Ignition Switch

Ignition Switch - 3 Position Magneto

• Back Up Nut: Plastic
• Face Nut: Hex Black Plastic
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 6 Color Coded Wire Leads/Potted
• Switch function: Off - Run - Start
• Type: 3 Position Magneto
• Exact OEM replacement installation
• Ideal for DFI, EFI and MPI engines
• Heavy duty potted construction
• Minimal bleed per circuit
• Molded umbrella type key
• Push to choke
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

Vervangt
• Mercury Marine 87-88107A5
• Mercury Sport Jet 87-88107A5

Toepassingsgebied
• Marine

Fabrikant
• Sierra
