Ignition Switch

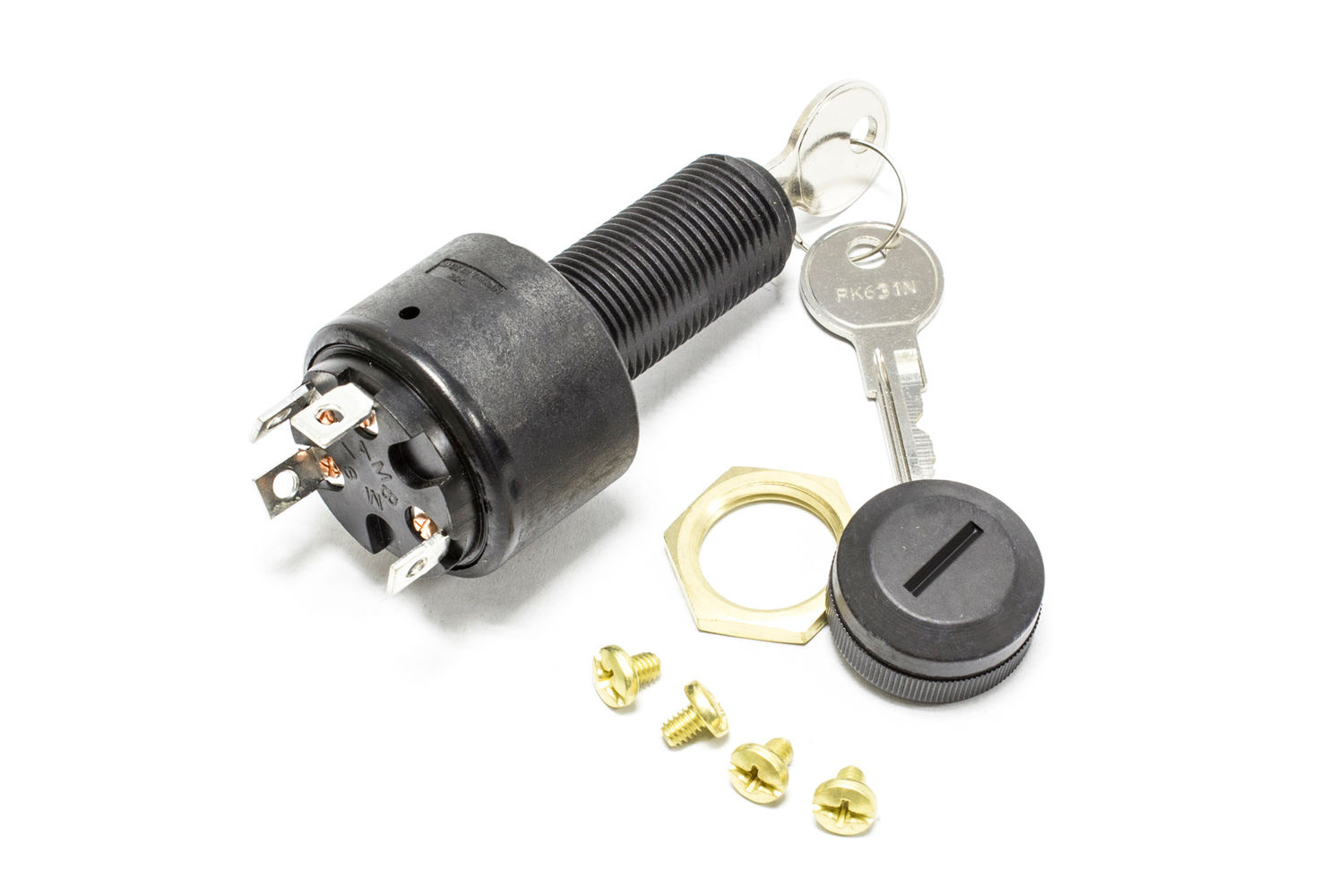

Ignition Switch - 4 Position Conventional

• Back Up Nut: Brass
• Face Nut: Knurled Black Plastic with Rubber Cap
• Hole Size: 7/8"
• Length: Short: 1 1/8" maximum panel thickness
• Material: Marine grade glass-filled polyester
• Rated Accessory: 15 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 4 Screw Tab
• Type: 4 Position Conventional

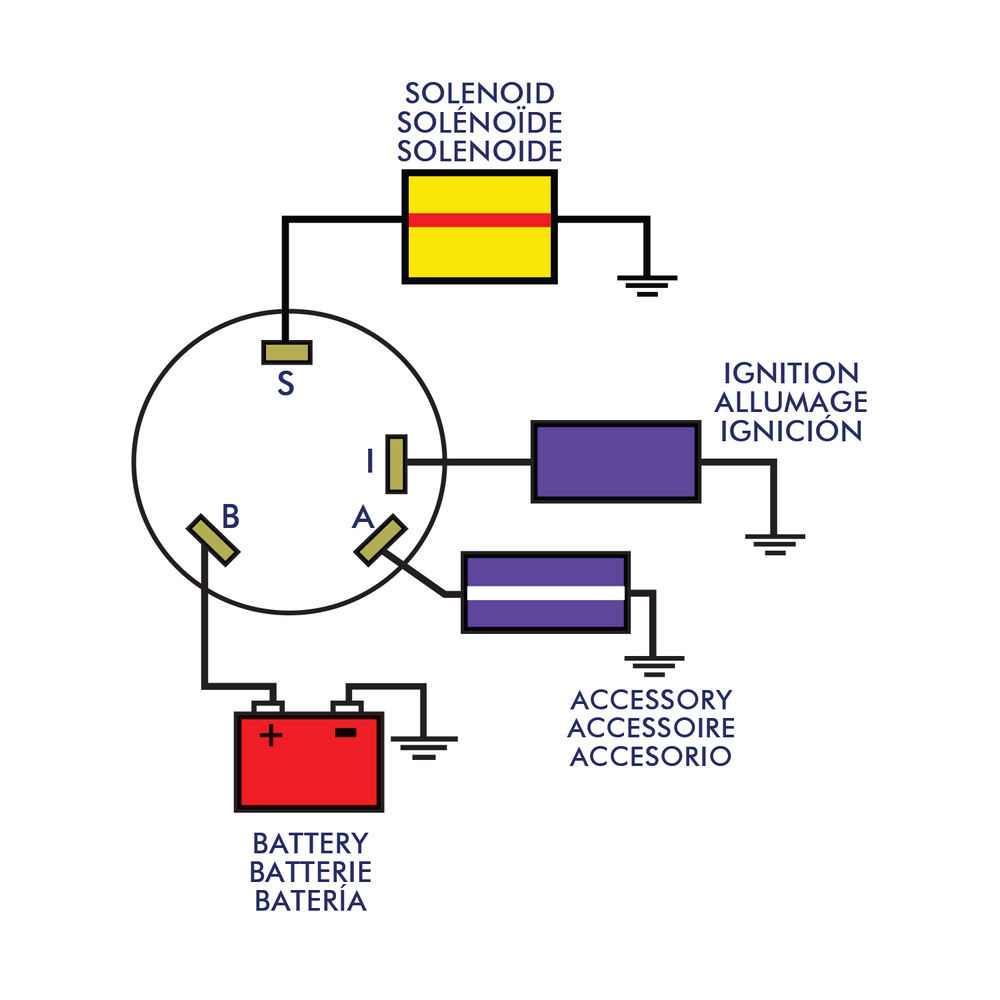

• Switch Function: Acc - Off - Run - Start
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

Vervangt
• Seadog 420375-1

Fabrikant
• Sierra
