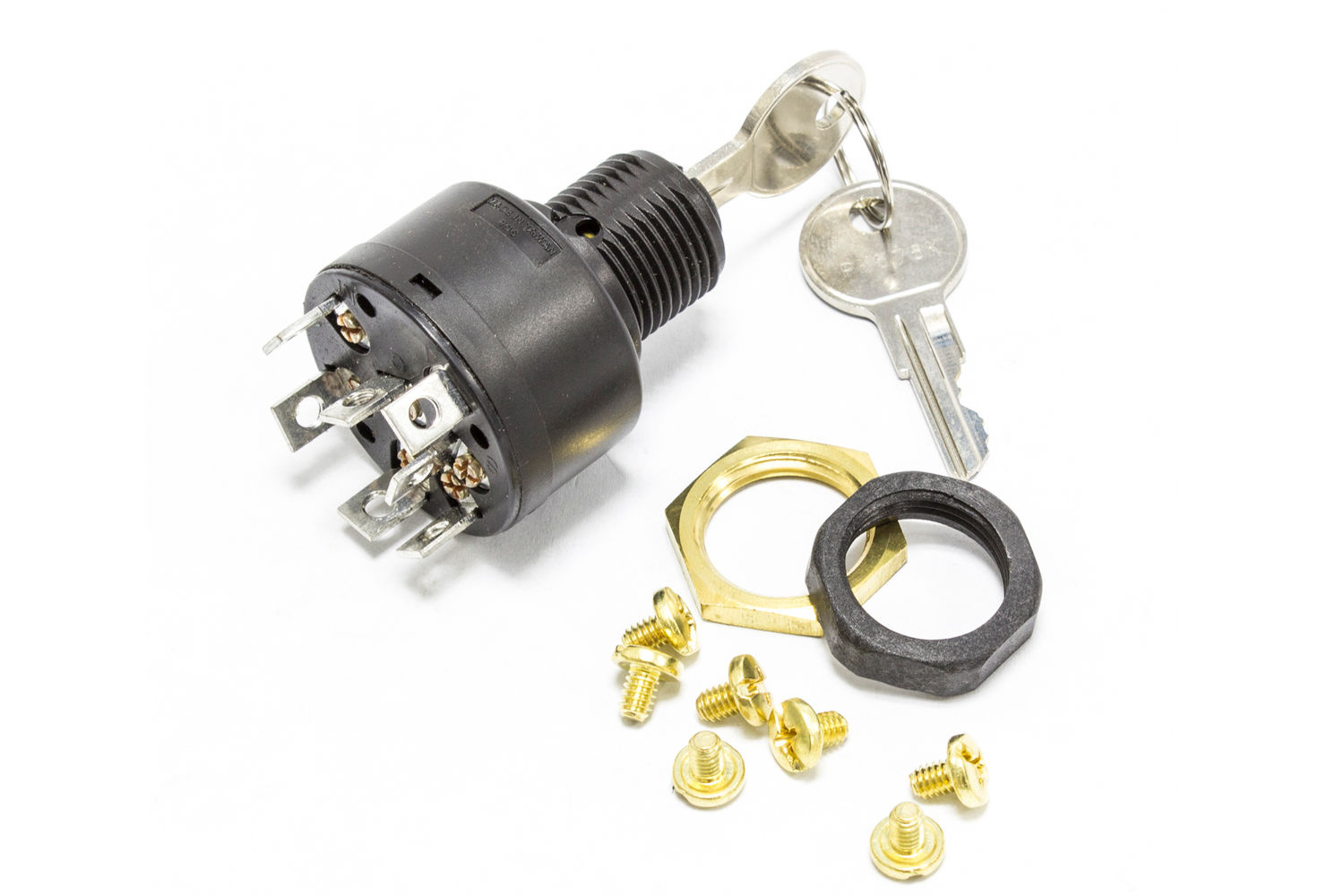

Ignition Switch

Ignition Switch - 4 Position Magneto

• Back Up Nut: Brass
• Face Nut: Hex Black Plastic
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Accessory: 15 Amp @ 12v DC
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC

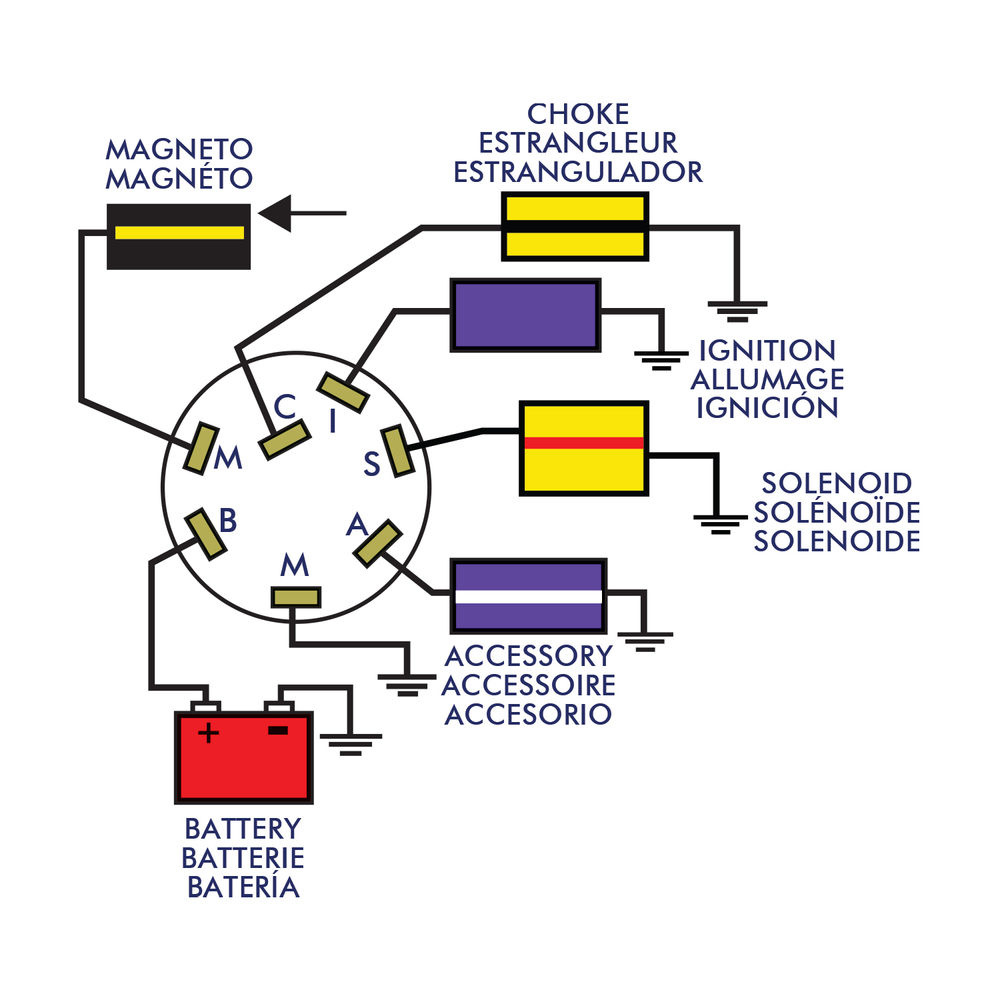

• Terminal Type: 7 Screw Tab
• Switch Function: Acc - Off - Run - Start
• Type: 4 Position Magneto
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Push to choke

Vervangt
• Seadog 420385-1

Aantal per motor
• 1

Fabrikant
• Sierra
