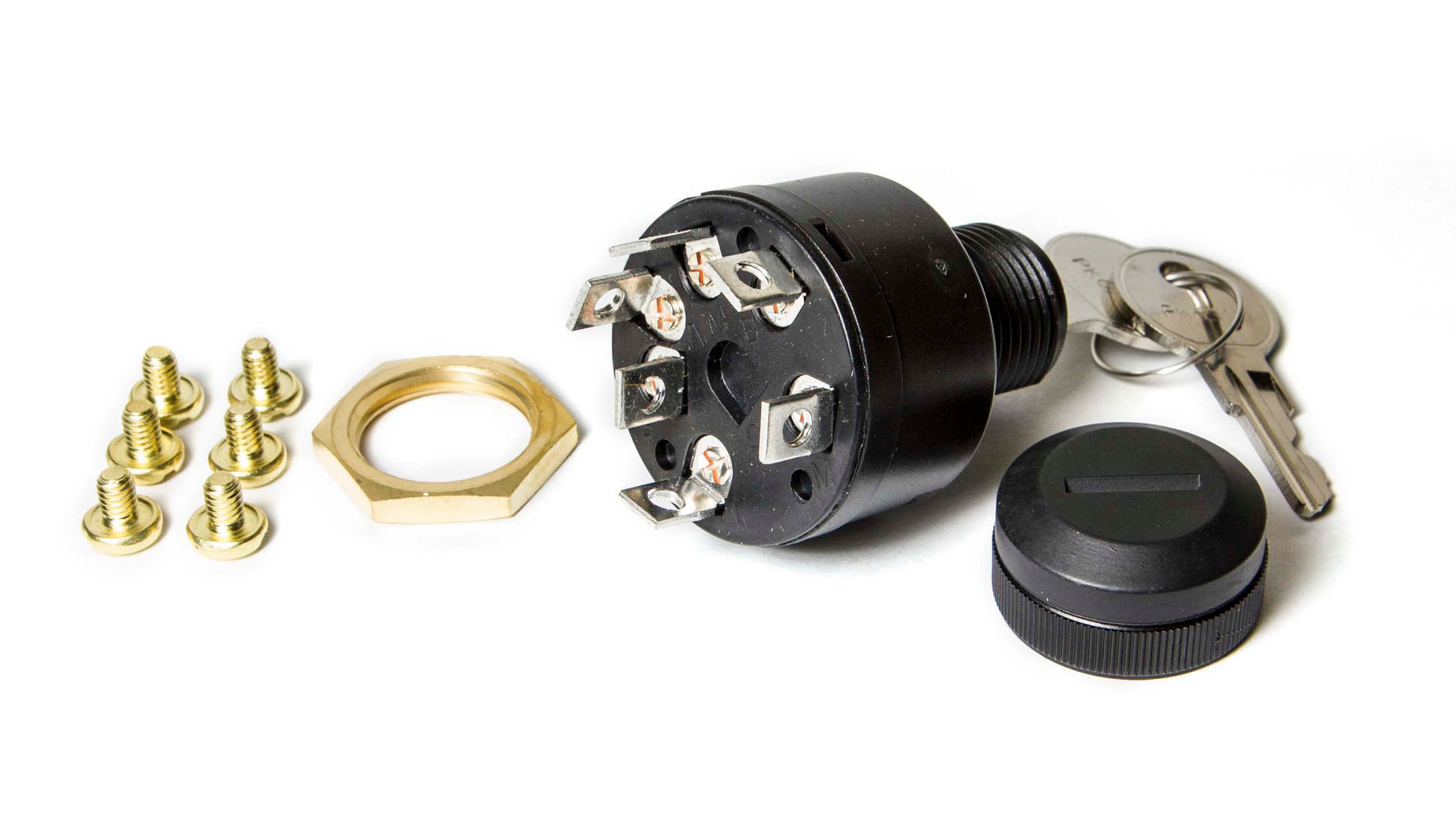

Ignition Switch

Ignition Switch - 4 Position Magneto

• Back Up Nut: Brass
• Face Nut: Knurled Black Plastic with Rubber Cap
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Accessory: 15 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12 VDC
• Terminal Type: 6 Tinned Brass Screw Terminals
• Switch Positions: Acc - Off - Run - Start
• Type: 4 Position Magneto
• For Outboard engines without choke circuit
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

Vervangt
• Sea Sense 50031154
• Valmar 31152

Aantal per motor
• 1

Fabrikant
• Sierra
