Ignition Switch

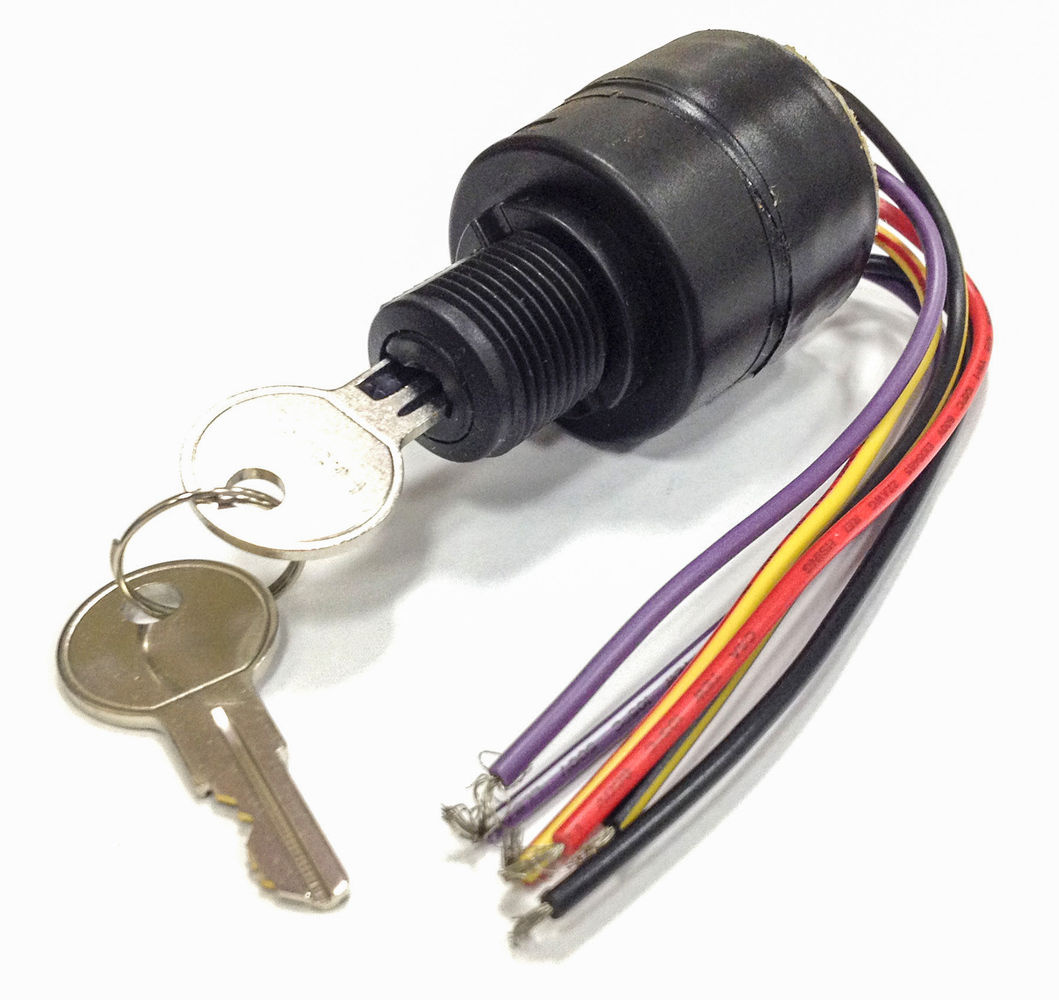

Ignition Switch - 4 Position Magneto

• Material: Polyester
• Length: Short: 5/8 maximum panel thickness

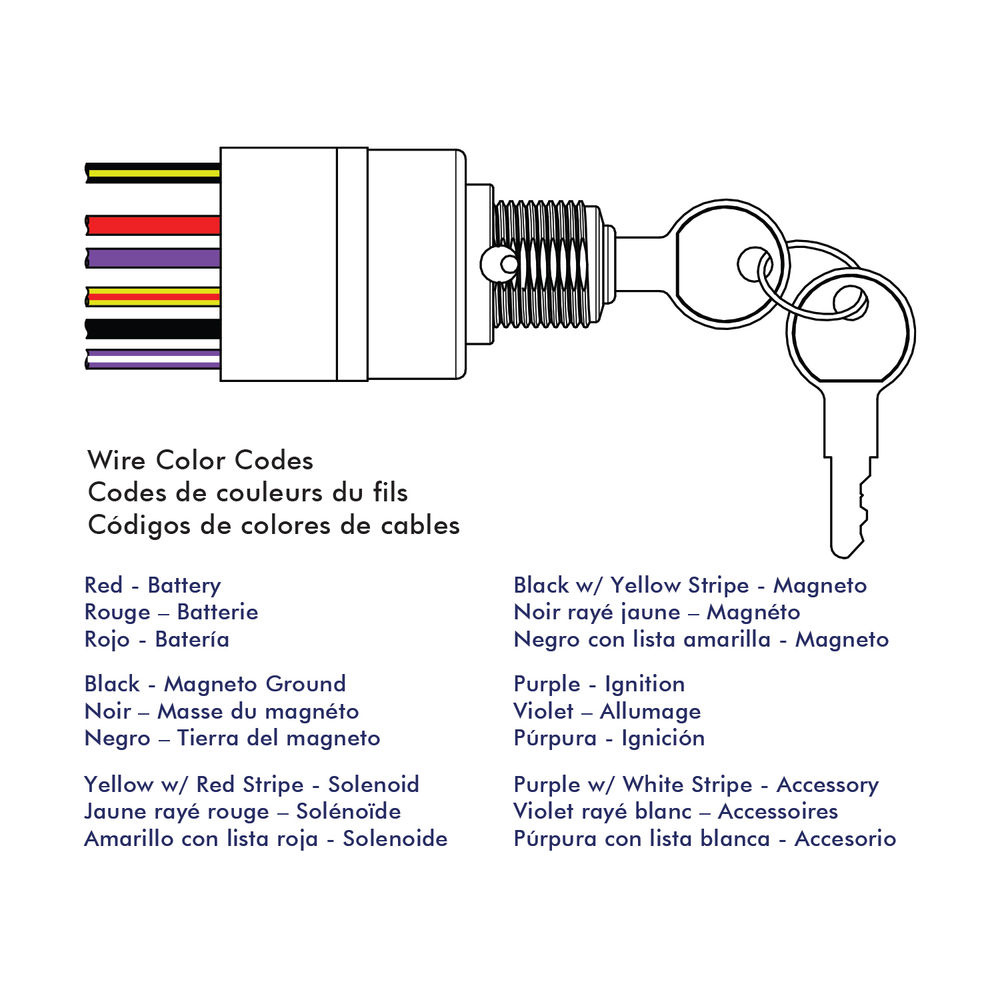

• Terminal Type: 6 color code wires
• Back up Nut: Brass
• Face Nut: Knurled black plastic with rubber cap
• Hole Size: 7/8
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Rated Accessory: 15 Amp @ 12v DC
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Switches Positions: Acc - Off - Run - Start
• Type: 4 Position Magneto
• For: Outboard engines without choke circuit

Aantal per motor
• 1

Fabrikant
• Sierra
